Choosing the right sortation technology is about more than comparing speed or capacity. The choice affects how efficiently products move through the warehouse, how easily operations can scale, and how well the system supports future business requirements.
Loop sorters and line sorters are both proven technologies for high-speed sortation, but they are designed to solve different operational challenges. The main difference between the two is the role they play within the wider material handling system.
Choosing between the two depends on factors such as warehouse layout, throughput requirements, operational complexity, and long-term growth plans. Both technologies can be configured in different ways and incorporated into the warehouse layout to support a wide range of operational requirements and multi-purpose sortation.

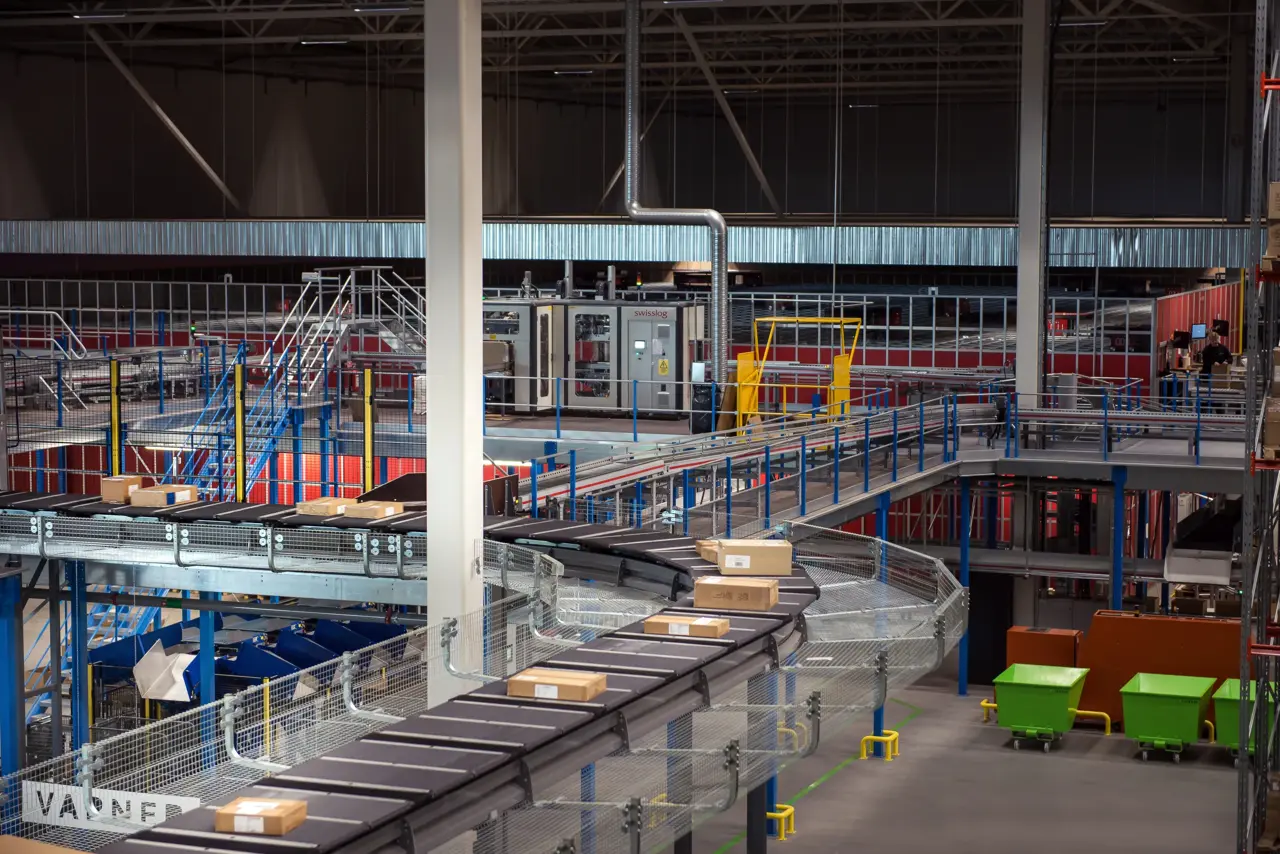

A loop sorter is a continuous sortation system that transports items around a closed loop using carriers such as cross-belt or tilt-tray technology. Rather than sorting products to outbound destinations, a loop sorter can serve as the operational backbone of an entire distribution centre.
The loop sorter’s greatest strength lies in connecting multiple warehouse processes within a single high-capacity system. After induction, products can be routed to storage areas, picking stations, value-added services, or shipping, allowing the sorter to support inbound, internal, and outbound material flows simultaneously.
A loop sorter can also integrate with a wide range of warehouse automation technologies, including automated storage and retrieval systems, AutoStore, pallet handling systems, conveyors, and goods-to-person solutions. By connecting these systems, the sorter can be used several times during a product’s journey through the warehouse, creating a flexible material flow that connects all functional areas and improves overall operational efficiency.
If a business’s requirements evolve, loop sorters also provide the flexibility to accommodate changing order profiles, seasonal peaks, and future capacity expansion without fundamentally redesigning the warehouse flow.
A line sorter transports products along a straight sorting line, diverting each item to its assigned destination as it moves through the system. This straightforward layout makes line sorters an effective solution for warehouses where products primarily move in one direction from induction to dispatch.

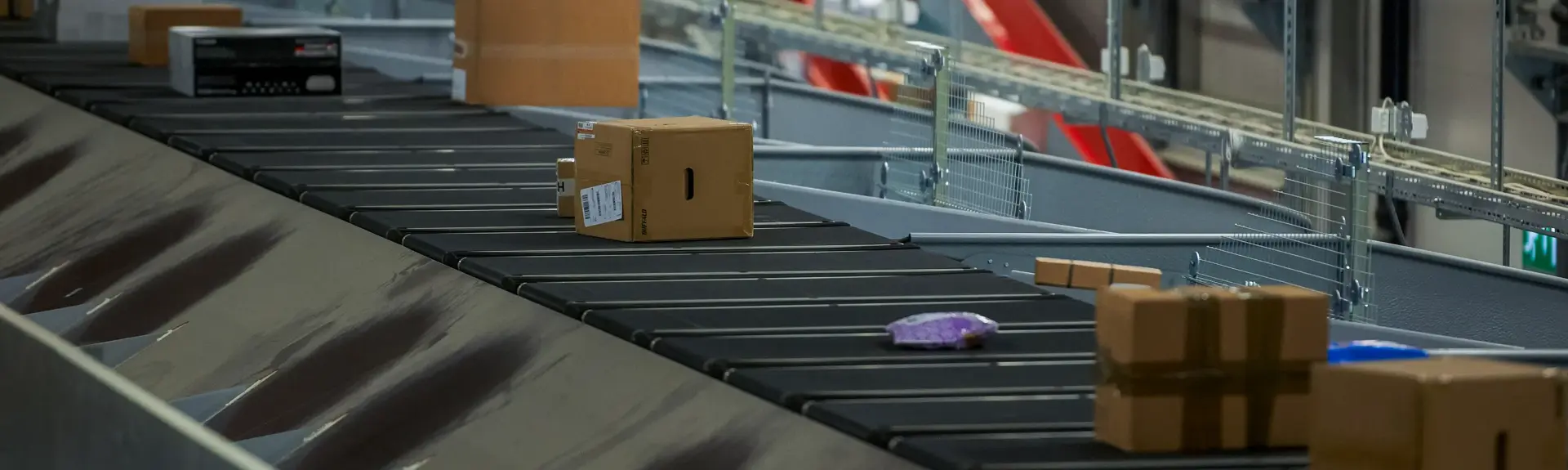

While traditional line sorters have long been valued for their simplicity, modern solutions have significantly expanded their capabilities. Technologies such as the BG Line Sorter combine the simplicity of a line sorter with the handling capabilities of high-capacity cross-belt technology. This enables reliable sorting across a broad range of item sizes, shapes, and packaging types.
Another key advantage is the modular design and fast implementation. Modern line sorters can be configured to make efficient use of available space and can be expanded, reconfigured, or even relocated as operational requirements change. This allows operators to increase capacity over time without replacing the entire system.
The mechanical design also contributes to high system availability. With relatively few moving parts, durable belt technologies, and straightforward service access, maintenance requirements remain low.
Although both technologies deliver reliable, high-speed sortation, they each offer distinct operational advantages. Understanding the key differences can help identify the best fit for your warehouse.
Both technologies deliver high sorting performance, but they optimise different aspects of warehouse operations.
Loop sorters are designed to maximise throughput across the entire distribution centre. Because products can circulate through the system and be routed between multiple operational processes, a loop sorter supports continuous material flow even in highly complex facilities with numerous destinations and automated systems.
Line sorters enable efficient sorting within a more direct material flow. They deliver high throughput for operations where products move from induction to their assigned destination without requiring repeated routing through different warehouse processes.
In practice, loop sorters optimise system-wide throughput, while line sorters optimise efficient sorting within a streamlined process.
Space utilisation is an important consideration in warehouse design.
Although a loop sorter requires a continuous loop configuration, it can reduce the need for additional transport equipment by connecting multiple operational processes through a single system. In larger distribution centres, this integrated approach can improve the overall use of warehouse space.
Line sorters are often preferred where floor space is more limited. Their straight, modular layout allows them to fit efficiently into linear warehouse designs. The ability to add or reposition modules also gives operators greater flexibility as facilities expand or operational priorities change.
Flexibility is another important factor when evaluating which sorter best fits a warehouse operation.
Loop sorters are designed to distribute products between multiple warehouse processes. They support recirculation, multiple routing paths, and simultaneous handling of inbound, internal, and outbound flows. This makes them well suited for facilities with changing workflows and a high degree of automation.
Line sorters provide flexibility in a different way. Their modular construction makes it easy to adapt system length or capacity as business needs evolve, while modern handling technologies allow them to process a wide variety of item types reliably. However, they are generally intended for more direct sorting processes rather than acting as the backbone of an entire warehouse operation.
Maintenance requirements directly influence operational availability and the total cost of ownership (TCO).
Loop sorters are proven technologies designed for continuous operation in demanding environments. Because they often support numerous warehouse processes and integrate with multiple automation systems, maintenance planning typically considers the broader material handling system.
Line sorters prioritise simplicity. A low number of moving parts, durable belt technologies, and straightforward access to service components help reduce wear while supporting ultra-low maintenance. The modular design also simplifies servicing and upgrades, helping operators maintain high system availability while reducing TCO.
Loop sorters are typically better suited for operations where flexibility and process integration are critical. These include large retail distribution centres, omnichannel fulfilment operations, cross-docking facilities, and high-throughput hubs where products move efficiently between multiple automated systems.
Line sorters are often preferred for medium-volume item handling, warehouse distribution, and e-commerce fulfilment, where material flow is more linear. Still, in some cases, conveyors can create a return loop for a line sorter, adding recirculation capability and increasing system productivity. Their compact footprint, modular architecture, and low maintenance requirements also make them an attractive choice for facilities that expect future growth but want to keep operations simple and scalable.
Ultimately, neither technology is limited to a specific industry. The right choice depends on how products move through the operation and the role the sorter is expected to play within the wider material handling system.
Choosing between a loop sorter and a line sorter starts with understanding the operational objectives of the warehouse.
A loop sorter is often the better choice when the sorter needs to do more than sort products for shipping. If it will connect multiple automated processes, support cross-docking, enable recirculation, and act as the backbone of the distribution centre, a loop sorter offers the flexibility and routing capability needed for high-throughput operations.
A line sorter is often the better choice when products follow a more direct path through the warehouse and operators require an efficient, space-conscious solution that is easy to install, maintain, and expand. Modern modular line sorters also provide the scalability to respond to changing volumes and future business growth without major disruption to operations.
There is no one-size-fits-all solution. Rather than focusing solely on sorting capacity, operators should consider how the sorter will support the overall material flow. Regardless of whether a loop sorter or a line sorter is selected, overall performance ultimately depends on how well the sorter integrates with warehouse software, control systems, and the wider material handling system. Taking this broader view will help ensure the chosen technology delivers value both today and as operational requirements evolve.
