autopac® - Automated Loading and Palletising

The BEUMER autopac® is an efficient and cost-effective system for simultaneous loading and palletising of bagged materials such as cement, lime or gypsum. In either a mobile or static configuration, it offers a wide range of applications guaranteeing optimum utilisation of dispatch capacities.

autopac building materials

Two in one: automated loading and palletising

In order to perfectly match your facility’s configuration, it is available in two different versions – BEUMER autopac® 2400 and BEUMER autopac® 3000 – capable of handling 2,400 and 3,000 bags per hour respectively, with or without pallets.

The BEUMER autopac® has a heavy-duty construction built to resist extreme ambient conditions, yet it is dimensioned for low space requirements. It convinces with its simple design, easy maintainability, maximum reliability, and operational safety. Constructed solely from electromechanical components, eliminating the need for hydraulic or pneumatic power stations or water-cooling, it excels with outstanding availability and efficiency – just plug and play.

Features

Various types of bag material

Depending on the bag size and aspect ratio, the machine can load bags in double patterns of five, six, and ten bags per layer. With a height to the ceiling of five metres, the maximum loading height is 3.5 metres. Gentle bag handling for various types of bag material – for example, paper and HDPE bags – is achieved through a very low positioning height. The bags are supported throughout the loading process instead of being lifted and potentially deformed, for example, by suction modules.

  • Automated loading and palletising of bagged material
  • Flexible packing patterns
  • Extremely low power consumption
  • Individually customisable bag feed
  • A variety of bag materials are supported

Loading processes tailored to your needs

Supported by the operator panel, preadjustment of the BEUMER autopac® is performed with just a few clicks. After the operator has stipulated the desired number of rows and layers, as well as the total number of bags, the BEUMER autopac® is moved into its initial loading position. These adjustments are supported by precise ultrasonic height measurements and maximal lateral adjustability.

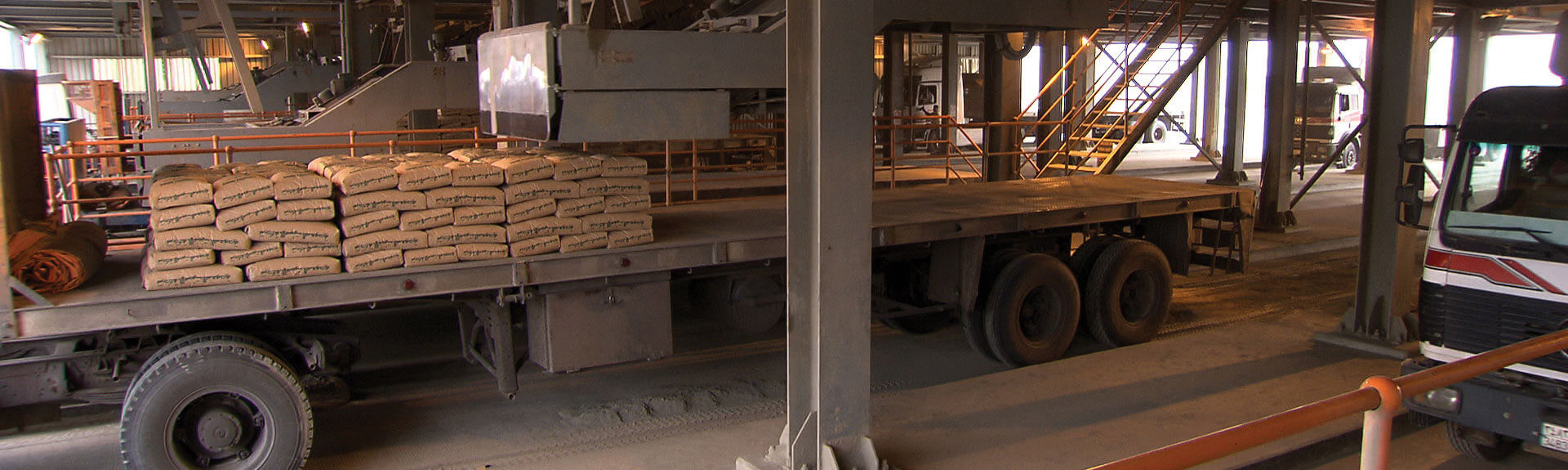

Now open trucks can be automatically loaded with bags directly from the packer while electronic registers ensure that the truck is neither under- nor overloaded. Manual corrections are obsolete, because the machine controls the height settings automatically. Layer calibration and equalisation are performed directly on the truck. For equalisation, the machine head presses on the underlying layer to bring it into a uniform flattened shape. Meanwhile, the next layer is already being prepared.

Customer Support for Automated Loading and Palletising

Competent engineering, fast and reliable on-site service as well as optimal spare parts supply round out our offering and ensure high reliability of the systems.

  • Customer Care
  • Parts Logistics
  • Hotline Support
  • Residential Service
  • Training and Qualification
  • Modernisation

Other loading solutions

We have a broad product offering and build complete systems in addition to individual components. Together with you we will find the right solution for your unique requirements.
