BG OptiFeed - gravimetric weigh feeder for alternative fuels

The world of cement manufacturing is shaped by rapidly evolving technologies, stringent regulatory requirements, and fluctuating market demands. In this environment, efficiency and precision in material handling are essential. The BG OptiFeed gravimetric weigh feeder is an innovative solution designed for the precise feeding and dosing of alternative fuels, delivering exceptional accuracy and reliability — key factors in achieving optimal combustion performance.

FEEDING OF ALTERNATIVE FUEL TAILORED TO YOUR NEEDS

The BG OptiFeed weigh feeder stands out for its exceptional adaptability and customisation options. Whether your operation requires the handling of fine or coarse AFR materials, or even challenging and potentially hazardous substances, the BG OptiFeed series is engineered to deliver. Each model is meticulously crafted to cater to the demand for high efficiency, precise material handling, and adaptability to various production scales, offering a broad spectrum of feeding capacities and precise control over material flow, even to multiple feeding points within the pyro process.

BG OptiFeed ensures reliable and precise fuel FEEDING

At the heart of the BG OptiFeed system lies our commitment to precision, reliability, and safety. With feeding accuracy of up to +/-1% and a feeding range of 1:10, the BG OptiFeed gravimetric weigh feeder ensures optimal fuel feeding. This not only enhances cost and energy efficiency but also supports smoother plant operations by maintaining steady flow rates, essential for optimal combustion conditions.

Furthermore, the accurate control over the fuel mix contributes to lower emissions, aiding compliance with stringent environmental regulations. Designed with safety in mind, the BG OptiFeed includes options for explosion protection, catering to ATEX zones 22, 21 and 20, and ensuring peace of mind in the handling of explosive materials.

Key Features

Broad range of weigh feeders for specific industry needs
Material bin volumes from 3 to 50 m³
Feed rate of up to 300m³/h
Feeding accuracy of up to ±1%
Control range 1:10
Feeding of fine as well as coarse materials
Screw synchronisation for consistent material discharge
Use of wear-resistant steel for screw flights and trough to ensure long service life
Control unit with remote setting and troubleshooting possibility
Supporting various communication protocols

Seamless integration into your AFR handling system

The BG OptiFeed series is equipped with cutting-edge technology like the BG OptiTec for remote setting and troubleshooting, ensuring maximum uptime and operational flexibility. With the air-lock function on PHT and support for various communication protocols, you gain a robust solution that seamlessly integrates into your AFR handling system.

If you are looking to enhance the operational efficiency, reduce environmental impact, and achieve unparalleled precision in alternative fuel dosing, the BG OptiFeed gravimetric weigh feeder offers a comprehensive and customisable solution.

Options

ATEX-compliant design for zones 21 and 22
Reduced explosion pressure design with relief vents
Reduced explosion pressure design with flameless vents
Overhung screw design for fibrous materials or materials with a tendency to agglomerate
Air filtration for applications with feeding into pneumatic transport

BG OptiFeed series: Technical Specifications

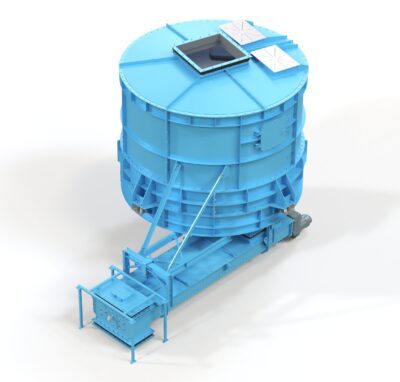

Screw weigh feeder – for applications requiring a larger intermediate storage, reception and feeding in one step

Technical Specification:

Double-screw weigh feeder

Material bin from 15 to 50 m³

One agitator on flat bottom

Can be fed directly by an overhead crane

Max. lump size up to 150mm (3D)

Feed rate of up to 250 m³/h (possible increase in tailor-made solutions)

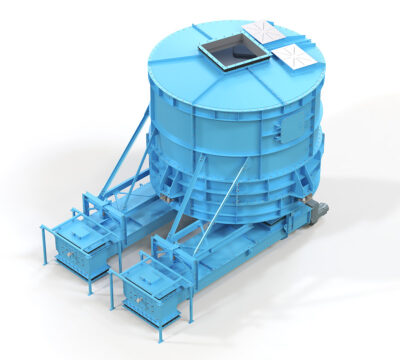

Screw weigh feeder – for two infeed points within one pyro process

Technical Specification:

Two double-screw weigh feeders

Material bin from 15 to 50 m³

One agitator on flat bottom

Max. lump size up to 150mm (3D)

Feed rate of up to 2 x 250 m³/h (possible increase in tailor-made solutions)
Screw weigh feeder – compact version of BG OptiFeed for applications where a large bin volume is not required

Technical Specification:

Double-screw weigh feeder

Material bin from 5 to 12.5 m³

Three agitators on walls of material bin

Max. lump size up to 150mm (3D)

Feed rate of up to 200 m³/h (possible increase in tailor-made solutions)

Optional triple-screw configuration for feed rates down to 0.2 m³/h

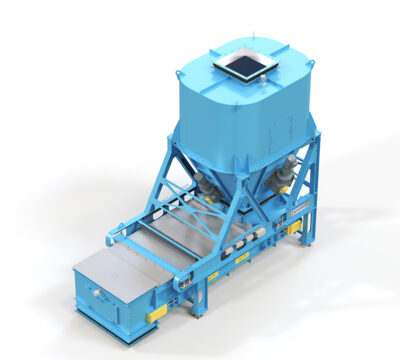

Belt weigh feeder – for applications requiring coarse material handling

Technical Specification:

Idlerless, fully enclosed belt weigh feeder

Material bin from 5 to 12.5 m³

Three agitators on walls of material bin

Max. lump size up to 250mm (3D)

Feed rate of up to 300 m³/h

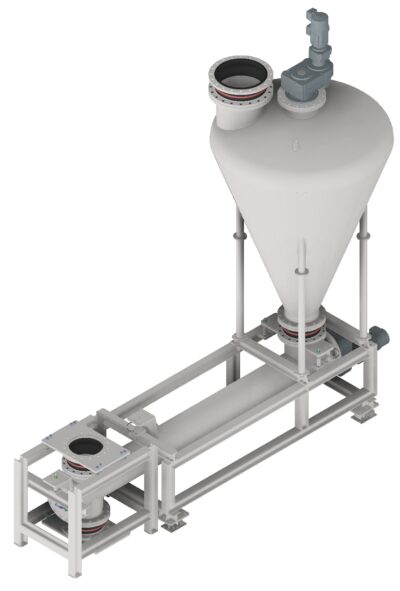

Screw weigh feeder – for applications requiring pressure proof design

Technical Specification:

Single-screw weigh feeder

Material bin 3 m³

One agitator in the bin

Pressure proof design for 10 bar

Max. lump size up to 30mm (3D)

Feed rate of up to 30 m³/h

AFR HANDLING SYSTEMS – SUPPLY OF ALTERNATIVE FUELS

Would you like to use alternative fuels for your cement production? We set up the AFR handling systems business segment specifically for the supply of alternative fuels. We develop and install the conveyor technology for the entire conveying length in your plant – from unloading, storing, dispensing, conveying, weighing to feeding the AFR into the incineration. Having just one contact person simplifies our communication and minimises conveyance errors.
