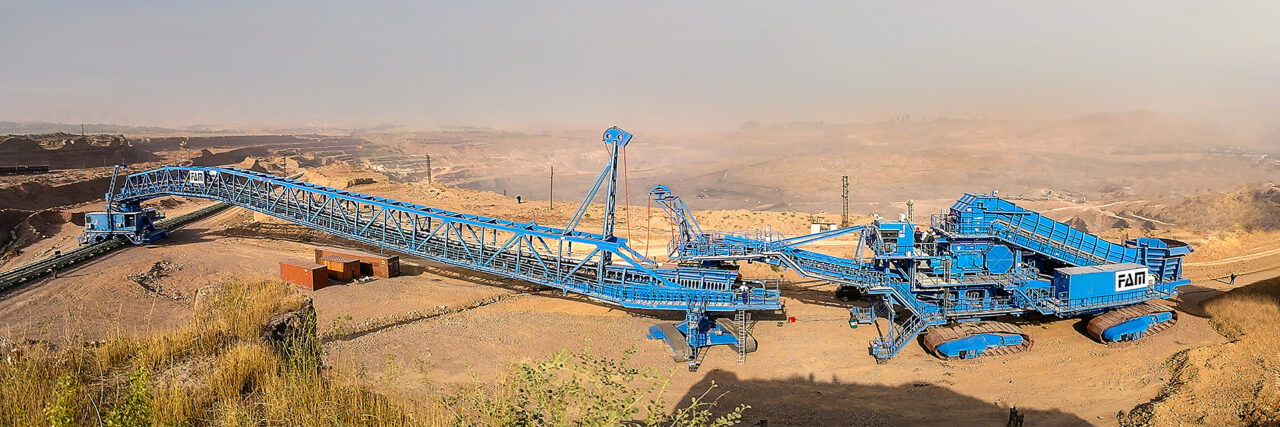

In-Pit Crushing Plants

In-pit crushing plants are a key element of modern surface mining operations where large material volumes must be handled efficiently and reliably. By positioning crushing capacity directly inside the pit, these systems reduce haulage distances and support a continuous material flow from extraction to downstream processing.

FAM in-pit crushing plants form the core crushing component of integrated In-Pit Crushing and Conveying (IPCC) systems, combining proven crushing technology with conveying, stockpiling, and loading systems across the mining value chain.
In-Pit Crushing Plants

In-pit crushing in surface mining operations

As open-pit mines expand in depth and footprint, conventional truck-based haulage becomes increasingly complex to operate and scale. Longer transport distances, higher fuel consumption, and increased traffic density in the pit directly affect operating costs, availability, and safety.

FAM in-pit crushing plants address these challenges by relocating the primary or secondary crushing stage closer to the active mining area. Run-of-mine material is reduced in size directly in the pit and transferred onto belt conveyors for continuous transport out of the mine, reducing reliance on long-distance truck haulage.

In-Pit Crushing solutions as part of IPCC systems

FAM in-pit crushing plants are engineered as integral elements of IPCC systems, where crushing, conveying, and downstream handling are designed as one coordinated material flow.

Crushed material is discharged from the crusher via a discharge boom onto a belt conveyor, which interfaces with mobile or fixed conveying systems. For ore, material is typically conveyed directly to the processing plant. Overburden and waste rock can be transported to designated disposal areas, supporting continuous and predictable mine operations.

By shifting material transport from trucks to conveyors, these systems can reduce traffic in the pit, simplify logistics, and support more stable energy consumption profiles over the life of the mine. The actual impact depends on site-specific conditions, system layout, and operational parameters and must be assessed on a project-by-project basis.

Key features of FAM in-pit crushing plants

  • Integrated system design
    Designed to operate as part of an IPCC system, crushing plants ensure consistent feed to downstream conveyors and reduce interface complexity.
  • Reduced haulage requirements
    Crushing material in situ enables conveyor-based transport, helping to limit diesel fuel use, infrastructure requirements, and traffic density in the pit.
  • Robust design for continuous operation
    Engineered for abrasive materials, high capacities, and demanding mining environments.
  • Flexible relocation concepts
    Crushing stations can be adapted to mine development, supporting both short-term flexibility and long-term production planning.
  • Lifecycle-oriented engineering
    Layout, relocation strategy, maintainability, and integration into existing mine infrastructure are considered from early project phases.

MOBILE, SEMI-MOBILE, AND FIXED IN-PIT CRUSHING PLANTS
Type Description
Mobile

Track-mounted crushers that move with the shovel, offering maximum flexibility in short-term mining horizons.
Semi-mobile

Relocatable crushing stations that are repositioned at defined intervals, balancing flexibility and capacity for long-life mines.
Fixed or permanent

High-capacity crushing stations installed at a defined in-pit location, typically used long-term, high-volume operations with stable pit geometry.

The selection of the appropriate in-pit crushing plant configuration depends on your mine layout, production rates, and relocation strategy. Each configuration typically includes a receiving hopper, apron or belt feeder, crusher or sizer, and a discharge conveyor feeding the downstream conveying system.

Applications across mining operations

FAM in-pit crushing plants are applied in both hard-rock and soft-rock mining operations, including iron ore, copper ore, coal, limestone, phosphate, and other bulk minerals.

The systems are particularly suited to large-scale, long-life mines where continuous material handling, predictable operating costs, and high availability are critical to overall mine performance.

Integrated solutions for the full material flow

As part of BEUMER Group, FAM in-pit crushing plants are combined with overland conveyors, stockyard systems, and loading solutions to create an integrated material handling system from the pit to the plant, stockpile, or port.

Our approach focuses on engineered reliability, system integration, and long-term partnership – supporting your operation from early planning through execution and throughout the system lifecycle.

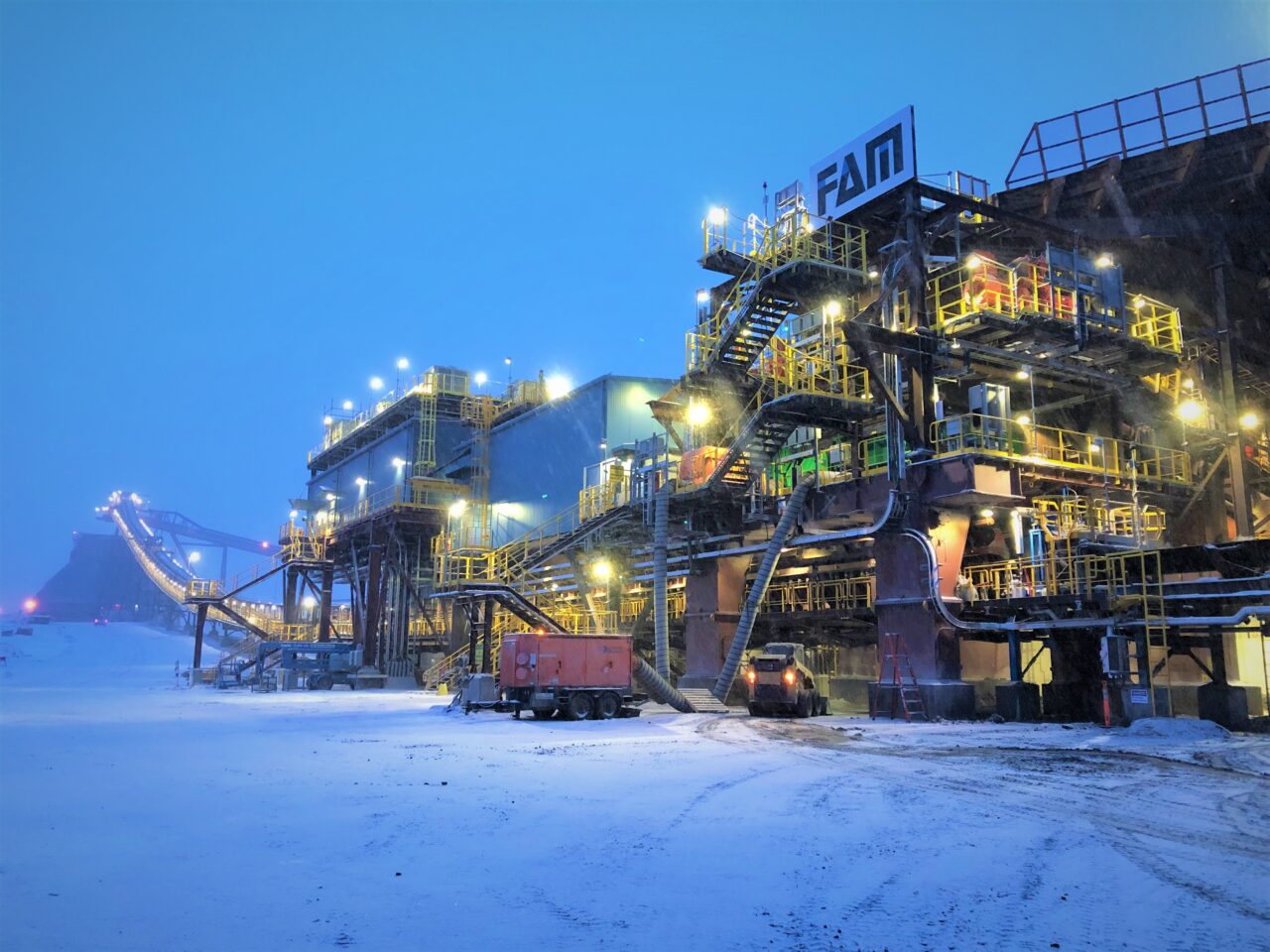

Selected References
